Displacement Maps for Easy Image Transformations with Cloudinary

Displacement Maps for Easy Image Transformations with Cloudinary

With Cloudinary's transformation options, you as web or mobile developers can manipulate images in real time through dynamic URLs, from optimization and responsive delivery to other tasks, complete with cool effects. For example, a robust transformation applies another image to displace your base image with a mapping algorithm that evaluates the base image's pixels, displacing them according to the intensity of the corresponding image's map pixels.

Specifically, the algorithm appraises the map image's red and green channels: the more intense the red color in the displacement map, the more the horizontal displacement of the corresponding pixel in the base image. Similarly, the more intense the green color in the displacement map, the larger the vertical displacement of the corresponding pixel in the base image.

Webinar
How to Optimize for Page Load Speed

How Do You Create a Displacement Map?

The following example demonstrates a base image displaced by an image map, creating a zoom effect:

displacement map for a zoom effect

Ruby:
Copy to clipboard
cl_image_tag("sample", :overlay=>"docs:zoom_map", :effect=>"displace", :x=>50, :y=>50, :use_root_path=>true)
PHP:
Copy to clipboard
cl_image_tag("sample", array("overlay"=>"docs:zoom_map", "effect"=>"displace", "x"=>50, "y"=>50, "use_root_path"=>true))
Python:
Copy to clipboard
CloudinaryImage("sample").image(overlay="docs:zoom_map", effect="displace", x=50, y=50, use_root_path=True)
Node.js:
Copy to clipboard
cloudinary.image("sample", {overlay: "docs:zoom_map", effect: "displace", x: 50, y: 50, use_root_path: true})
Java:
Copy to clipboard
cloudinary.url().transformation(new Transformation().overlay(new Layer().publicId("docs:zoom_map")).effect("displace").x(50).y(50)).useRootPath(true).imageTag("sample");
JS:
Copy to clipboard
cloudinary.imageTag('sample', {overlay: new cloudinary.Layer().publicId("docs:zoom_map"), effect: "displace", x: 50, y: 50, useRootPath: true}).toHtml();
jQuery:
Copy to clipboard
$.cloudinary.image("sample", {overlay: new cloudinary.Layer().publicId("docs:zoom_map"), effect: "displace", x: 50, y: 50, use_root_path: true})
React:
Copy to clipboard
<Image publicId="sample" useRootPath="true">
  <Transformation overlay="docs:zoom_map" effect="displace" x="50" y="50" />
</Image>
Vue.js:
Copy to clipboard
<cld-image publicId="sample" useRootPath="true">
  <cld-transformation overlay="docs:zoom_map" effect="displace" x="50" y="50" />
</cld-image>
Angular:
Copy to clipboard
<cl-image public-id="sample" use-root-path="true">
  <cl-transformation overlay="docs:zoom_map" effect="displace" x="50" y="50">
  </cl-transformation>
</cl-image>
.Net:
Copy to clipboard
cloudinary.Api.UrlImgUp.Transform(new Transformation().Overlay(new Layer().PublicId("docs:zoom_map")).Effect("displace").X(50).Y(50)).UseRootPath(true).BuildImageTag("sample")
Android:
Copy to clipboard
MediaManager.get().url().transformation(new Transformation().overlay(new Layer().publicId("docs:zoom_map")).effect("displace").x(50).y(50)).useRootPath(true).generate("sample");
iOS:
Copy to clipboard
imageView.cldSetImage(cloudinary.createUrl().setUseRootPath( true).setTransformation(CLDTransformation().setOverlay("docs:zoom_map").setEffect("displace").setX(50).setY(50)).generate("sample")!, cloudinary: cloudinary)

The next example uses a displacement map to warp the perspective of an overlay image for final placement as an overlay on another image:

displacement map for image overlay

Ruby:
Copy to clipboard
cl_image_tag("sample", :overlay=>"radialize", :effect=>"displace", :x=>50, :y=>50, :use_root_path=>true)
PHP:
Copy to clipboard
cl_image_tag("sample", array("overlay"=>"radialize", "effect"=>"displace", "x"=>50, "y"=>50, "use_root_path"=>true))
Python:
Copy to clipboard
CloudinaryImage("sample").image(overlay="radialize", effect="displace", x=50, y=50, use_root_path=True)
Node.js:
Copy to clipboard
cloudinary.image("sample", {overlay: "radialize", effect: "displace", x: 50, y: 50, use_root_path: true})
Java:
Copy to clipboard
cloudinary.url().transformation(new Transformation().overlay(new Layer().publicId("radialize")).effect("displace").x(50).y(50)).useRootPath(true).imageTag("sample");
JS:
Copy to clipboard
cloudinary.imageTag('sample', {overlay: new cloudinary.Layer().publicId("radialize"), effect: "displace", x: 50, y: 50, useRootPath: true}).toHtml();
jQuery:
Copy to clipboard
$.cloudinary.image("sample", {overlay: new cloudinary.Layer().publicId("radialize"), effect: "displace", x: 50, y: 50, use_root_path: true})
React:
Copy to clipboard
<Image publicId="sample" useRootPath="true">
  <Transformation overlay="radialize" effect="displace" x="50" y="50" />
</Image>
Vue.js:
Copy to clipboard
<cld-image publicId="sample" useRootPath="true">
  <cld-transformation overlay="radialize" effect="displace" x="50" y="50" />
</cld-image>
Angular:
Copy to clipboard
<cl-image public-id="sample" use-root-path="true">
  <cl-transformation overlay="radialize" effect="displace" x="50" y="50">
  </cl-transformation>
</cl-image>
.Net:
Copy to clipboard
cloudinary.Api.UrlImgUp.Transform(new Transformation().Overlay(new Layer().PublicId("radialize")).Effect("displace").X(50).Y(50)).UseRootPath(true).BuildImageTag("sample")
Android:
Copy to clipboard
MediaManager.get().url().transformation(new Transformation().overlay(new Layer().publicId("radialize")).effect("displace").x(50).y(50)).useRootPath(true).generate("sample");
iOS:
Copy to clipboard
imageView.cldSetImage(cloudinary.createUrl().setUseRootPath( true).setTransformation(CLDTransformation().setOverlay("radialize").setEffect("displace").setX(50).setY(50)).generate("sample")!, cloudinary: cloudinary)

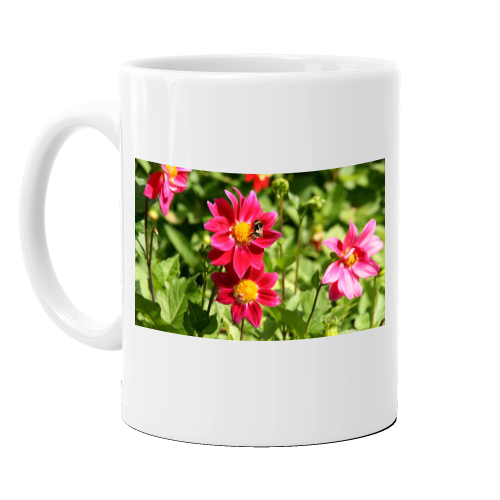

Using this overlay transformation for placement on a mug:

Zoom displacement map

Ruby:
Copy to clipboard
cl_image_tag("left_mug", :use_root_path=>true, :transformation=>[
  {:width=>500, :crop=>"scale"},
  {:overlay=>"sample.png", :width=>250, :height=>250, :crop=>"pad"},
  {:overlay=>"radialize"},
  {:flags=>"layer_apply", :effect=>"displace", :y=>-8},
  {:flags=>"layer_apply", :x=>10, :background=>"transparent"}
  ])
PHP:
Copy to clipboard
cl_image_tag("left_mug", array("use_root_path"=>true, "transformation"=>array(
  array("width"=>500, "crop"=>"scale"),
  array("overlay"=>"sample.png", "width"=>250, "height"=>250, "crop"=>"pad"),
  array("overlay"=>"radialize"),
  array("flags"=>"layer_apply", "effect"=>"displace", "y"=>-8),
  array("flags"=>"layer_apply", "x"=>10, "background"=>"transparent")
  )))
Python:
Copy to clipboard
CloudinaryImage("left_mug").image(use_root_path=True, transformation=[
  {'width': 500, 'crop': "scale"},
  {'overlay': "sample.png", 'width': 250, 'height': 250, 'crop': "pad"},
  {'overlay': "radialize"},
  {'flags': "layer_apply", 'effect': "displace", 'y': -8},
  {'flags': "layer_apply", 'x': 10, 'background': "transparent"}
  ])
Node.js:
Copy to clipboard
cloudinary.image("left_mug", {use_root_path: true, transformation: [
  {width: 500, crop: "scale"},
  {overlay: "sample.png", width: 250, height: 250, crop: "pad"},
  {overlay: "radialize"},
  {flags: "layer_apply", effect: "displace", y: -8},
  {flags: "layer_apply", x: 10, background: "transparent"}
  ]})
Java:
Copy to clipboard
cloudinary.url().transformation(new Transformation()
  .width(500).crop("scale").chain()
  .overlay(new Layer().publicId("sample.png")).width(250).height(250).crop("pad").chain()
  .overlay(new Layer().publicId("radialize")).chain()
  .flags("layer_apply").effect("displace").y(-8).chain()
  .flags("layer_apply").x(10).background("transparent")).useRootPath(true).imageTag("left_mug");
JS:
Copy to clipboard
cloudinary.imageTag('left_mug', {useRootPath: true, transformation: [
  {width: 500, crop: "scale"},
  {overlay: new cloudinary.Layer().publicId("sample.png"), width: 250, height: 250, crop: "pad"},
  {overlay: new cloudinary.Layer().publicId("radialize")},
  {flags: "layer_apply", effect: "displace", y: -8},
  {flags: "layer_apply", x: 10, background: "transparent"}
  ]}).toHtml();
jQuery:
Copy to clipboard
$.cloudinary.image("left_mug", {use_root_path: true, transformation: [
  {width: 500, crop: "scale"},
  {overlay: new cloudinary.Layer().publicId("sample.png"), width: 250, height: 250, crop: "pad"},
  {overlay: new cloudinary.Layer().publicId("radialize")},
  {flags: "layer_apply", effect: "displace", y: -8},
  {flags: "layer_apply", x: 10, background: "transparent"}
  ]})
React:
Copy to clipboard
<Image publicId="left_mug" useRootPath="true">
  <Transformation width="500" crop="scale" />
  <Transformation overlay="sample.png" width="250" height="250" crop="pad" />
  <Transformation overlay="radialize" />
  <Transformation flags="layer_apply" effect="displace" y="-8" />
  <Transformation flags="layer_apply" x="10" background="transparent" />
</Image>
Vue.js:
Copy to clipboard
<cld-image publicId="left_mug" useRootPath="true">
  <cld-transformation width="500" crop="scale" />
  <cld-transformation overlay="sample.png" width="250" height="250" crop="pad" />
  <cld-transformation overlay="radialize" />
  <cld-transformation flags="layer_apply" effect="displace" y="-8" />
  <cld-transformation flags="layer_apply" x="10" background="transparent" />
</cld-image>
Angular:
Copy to clipboard
<cl-image public-id="left_mug" use-root-path="true">
  <cl-transformation width="500" crop="scale">
  </cl-transformation>
  <cl-transformation overlay="sample.png" width="250" height="250" crop="pad">
  </cl-transformation>
  <cl-transformation overlay="radialize">
  </cl-transformation>
  <cl-transformation flags="layer_apply" effect="displace" y="-8">
  </cl-transformation>
  <cl-transformation flags="layer_apply" x="10" background="transparent">
  </cl-transformation>
</cl-image>
.Net:
Copy to clipboard
cloudinary.Api.UrlImgUp.Transform(new Transformation()
  .Width(500).Crop("scale").Chain()
  .Overlay(new Layer().PublicId("sample.png")).Width(250).Height(250).Crop("pad").Chain()
  .Overlay(new Layer().PublicId("radialize")).Chain()
  .Flags("layer_apply").Effect("displace").Y(-8).Chain()
  .Flags("layer_apply").X(10).Background("transparent")).UseRootPath(true).BuildImageTag("left_mug")
Android:
Copy to clipboard
MediaManager.get().url().transformation(new Transformation()
  .width(500).crop("scale").chain()
  .overlay(new Layer().publicId("sample.png")).width(250).height(250).crop("pad").chain()
  .overlay(new Layer().publicId("radialize")).chain()
  .flags("layer_apply").effect("displace").y(-8).chain()
  .flags("layer_apply").x(10).background("transparent")).useRootPath(true).generate("left_mug");
iOS:
Copy to clipboard
imageView.cldSetImage(cloudinary.createUrl().setUseRootPath( true).setTransformation(CLDTransformation()
  .setWidth(500).setCrop("scale").chain()
  .setOverlay("sample.png").setWidth(250).setHeight(250).setCrop("pad").chain()
  .setOverlay("radialize").chain()
  .setFlags("layer_apply").setEffect("displace").setY(-8).chain()
  .setFlags("layer_apply").setX(10).setBackground("transparent")).generate("left_mug")!, cloudinary: cloudinary)

The Displacement Effect

The displacement effect is controlled by a few configurable parameters that allow you to fine tune the desired result. The dynamic URL for the final image includes:

  • The public_id of the base image.
  • The public_id of the image map to use as a displacement template, added using the overlay parameter (l in URLs).
  • The effect parameter set to displace (e_displace in URLs), which tells Cloudinary to use the image map as a displacement effect rather than adding it as an overlay.
  • The x and y parameters to configure the maximum allowed displacement in the horizontal and vertical directions (negative values for left and up respectively, 0 for no displacement).

The final displacement of each pixel in the base image is determined by a combination of the red and green color channels, together with the configured x and y parameters. For example, for a given x value of 20 and a pixel with a red value of 255 (highest), the corresponding base image pixel would be displaced by 20 pixels horizontally, while a red value of 25 (10%) would only displace the base image pixel by 2 pixels horizontally.

The following example demonstrates the zoom displacement map shown above (along with an overlay of a magnifying glass) to "magnify" the base image.

Ruby:
Copy to clipboard
cl_image_tag("woman.jpg", :use_root_path=>true, :transformation=>[
  {:width=>500, :height=>500, :crop=>"fill"},
  {:overlay=>"woman", :width=>500, :height=>500, :crop=>"fill"},
  {:width=>200, :height=>200, :x=>20, :y=>20, :crop=>"crop"},
  {:width=>200, :height=>200, :overlay=>"docs:zoom_map", :crop=>"fill"},
  {:flags=>"layer_apply", :effect=>"displace", :x=>20, :y=>20},
  {:flags=>"layer_apply", :gravity=>"north_west", :x=>20, :y=>20},
  {:overlay=>"mag-glass.png", :width=>330, :height=>215, :gravity=>"north_west", :x=>38, :y=>38, :flags=>"no_overflow"}
  ])
PHP:
Copy to clipboard
cl_image_tag("woman.jpg", array("use_root_path"=>true, "transformation"=>array(
  array("width"=>500, "height"=>500, "crop"=>"fill"),
  array("overlay"=>"woman", "width"=>500, "height"=>500, "crop"=>"fill"),
  array("width"=>200, "height"=>200, "x"=>20, "y"=>20, "crop"=>"crop"),
  array("width"=>200, "height"=>200, "overlay"=>"docs:zoom_map", "crop"=>"fill"),
  array("flags"=>"layer_apply", "effect"=>"displace", "x"=>20, "y"=>20),
  array("flags"=>"layer_apply", "gravity"=>"north_west", "x"=>20, "y"=>20),
  array("overlay"=>"mag-glass.png", "width"=>330, "height"=>215, "gravity"=>"north_west", "x"=>38, "y"=>38, "flags"=>"no_overflow")
  )))
Python:
Copy to clipboard
CloudinaryImage("woman.jpg").image(use_root_path=True, transformation=[
  {'width': 500, 'height': 500, 'crop': "fill"},
  {'overlay': "woman", 'width': 500, 'height': 500, 'crop': "fill"},
  {'width': 200, 'height': 200, 'x': 20, 'y': 20, 'crop': "crop"},
  {'width': 200, 'height': 200, 'overlay': "docs:zoom_map", 'crop': "fill"},
  {'flags': "layer_apply", 'effect': "displace", 'x': 20, 'y': 20},
  {'flags': "layer_apply", 'gravity': "north_west", 'x': 20, 'y': 20},
  {'overlay': "mag-glass.png", 'width': 330, 'height': 215, 'gravity': "north_west", 'x': 38, 'y': 38, 'flags': "no_overflow"}
  ])
Node.js:
Copy to clipboard
cloudinary.image("woman.jpg", {use_root_path: true, transformation: [
  {width: 500, height: 500, crop: "fill"},
  {overlay: "woman", width: 500, height: 500, crop: "fill"},
  {width: 200, height: 200, x: 20, y: 20, crop: "crop"},
  {width: 200, height: 200, overlay: "docs:zoom_map", crop: "fill"},
  {flags: "layer_apply", effect: "displace", x: 20, y: 20},
  {flags: "layer_apply", gravity: "north_west", x: 20, y: 20},
  {overlay: "mag-glass.png", width: 330, height: 215, gravity: "north_west", x: 38, y: 38, flags: "no_overflow"}
  ]})
Java:
Copy to clipboard
cloudinary.url().transformation(new Transformation()
  .width(500).height(500).crop("fill").chain()
  .overlay(new Layer().publicId("woman")).width(500).height(500).crop("fill").chain()
  .width(200).height(200).x(20).y(20).crop("crop").chain()
  .width(200).height(200).overlay(new Layer().publicId("docs:zoom_map")).crop("fill").chain()
  .flags("layer_apply").effect("displace").x(20).y(20).chain()
  .flags("layer_apply").gravity("north_west").x(20).y(20).chain()
  .overlay(new Layer().publicId("mag-glass.png")).width(330).height(215).gravity("north_west").x(38).y(38).flags("no_overflow")).useRootPath(true).imageTag("woman.jpg");
JS:
Copy to clipboard
cloudinary.imageTag('woman.jpg', {useRootPath: true, transformation: [
  {width: 500, height: 500, crop: "fill"},
  {overlay: new cloudinary.Layer().publicId("woman"), width: 500, height: 500, crop: "fill"},
  {width: 200, height: 200, x: 20, y: 20, crop: "crop"},
  {width: 200, height: 200, overlay: new cloudinary.Layer().publicId("docs:zoom_map"), crop: "fill"},
  {flags: "layer_apply", effect: "displace", x: 20, y: 20},
  {flags: "layer_apply", gravity: "north_west", x: 20, y: 20},
  {overlay: new cloudinary.Layer().publicId("mag-glass.png"), width: 330, height: 215, gravity: "north_west", x: 38, y: 38, flags: "no_overflow"}
  ]}).toHtml();
jQuery:
Copy to clipboard
$.cloudinary.image("woman.jpg", {use_root_path: true, transformation: [
  {width: 500, height: 500, crop: "fill"},
  {overlay: new cloudinary.Layer().publicId("woman"), width: 500, height: 500, crop: "fill"},
  {width: 200, height: 200, x: 20, y: 20, crop: "crop"},
  {width: 200, height: 200, overlay: new cloudinary.Layer().publicId("docs:zoom_map"), crop: "fill"},
  {flags: "layer_apply", effect: "displace", x: 20, y: 20},
  {flags: "layer_apply", gravity: "north_west", x: 20, y: 20},
  {overlay: new cloudinary.Layer().publicId("mag-glass.png"), width: 330, height: 215, gravity: "north_west", x: 38, y: 38, flags: "no_overflow"}
  ]})
React:
Copy to clipboard
<Image publicId="woman.jpg" useRootPath="true">
  <Transformation width="500" height="500" crop="fill" />
  <Transformation overlay="woman" width="500" height="500" crop="fill" />
  <Transformation width="200" height="200" x="20" y="20" crop="crop" />
  <Transformation width="200" height="200" overlay="docs:zoom_map" crop="fill" />
  <Transformation flags="layer_apply" effect="displace" x="20" y="20" />
  <Transformation flags="layer_apply" gravity="north_west" x="20" y="20" />
  <Transformation overlay="mag-glass.png" width="330" height="215" gravity="north_west" x="38" y="38" flags="no_overflow" />
</Image>
Vue.js:
Copy to clipboard
<cld-image publicId="woman.jpg" useRootPath="true">
  <cld-transformation width="500" height="500" crop="fill" />
  <cld-transformation overlay="woman" width="500" height="500" crop="fill" />
  <cld-transformation width="200" height="200" x="20" y="20" crop="crop" />
  <cld-transformation width="200" height="200" overlay="docs:zoom_map" crop="fill" />
  <cld-transformation flags="layer_apply" effect="displace" x="20" y="20" />
  <cld-transformation flags="layer_apply" gravity="north_west" x="20" y="20" />
  <cld-transformation overlay="mag-glass.png" width="330" height="215" gravity="north_west" x="38" y="38" flags="no_overflow" />
</cld-image>
Angular:
Copy to clipboard
<cl-image public-id="woman.jpg" use-root-path="true">
  <cl-transformation width="500" height="500" crop="fill">
  </cl-transformation>
  <cl-transformation overlay="woman" width="500" height="500" crop="fill">
  </cl-transformation>
  <cl-transformation width="200" height="200" x="20" y="20" crop="crop">
  </cl-transformation>
  <cl-transformation width="200" height="200" overlay="docs:zoom_map" crop="fill">
  </cl-transformation>
  <cl-transformation flags="layer_apply" effect="displace" x="20" y="20">
  </cl-transformation>
  <cl-transformation flags="layer_apply" gravity="north_west" x="20" y="20">
  </cl-transformation>
  <cl-transformation overlay="mag-glass.png" width="330" height="215" gravity="north_west" x="38" y="38" flags="no_overflow">
  </cl-transformation>
</cl-image>
.Net:
Copy to clipboard
cloudinary.Api.UrlImgUp.Transform(new Transformation()
  .Width(500).Height(500).Crop("fill").Chain()
  .Overlay(new Layer().PublicId("woman")).Width(500).Height(500).Crop("fill").Chain()
  .Width(200).Height(200).X(20).Y(20).Crop("crop").Chain()
  .Width(200).Height(200).Overlay(new Layer().PublicId("docs:zoom_map")).Crop("fill").Chain()
  .Flags("layer_apply").Effect("displace").X(20).Y(20).Chain()
  .Flags("layer_apply").Gravity("north_west").X(20).Y(20).Chain()
  .Overlay(new Layer().PublicId("mag-glass.png")).Width(330).Height(215).Gravity("north_west").X(38).Y(38).Flags("no_overflow")).UseRootPath(true).BuildImageTag("woman.jpg")
Android:
Copy to clipboard
MediaManager.get().url().transformation(new Transformation()
  .width(500).height(500).crop("fill").chain()
  .overlay(new Layer().publicId("woman")).width(500).height(500).crop("fill").chain()
  .width(200).height(200).x(20).y(20).crop("crop").chain()
  .width(200).height(200).overlay(new Layer().publicId("docs:zoom_map")).crop("fill").chain()
  .flags("layer_apply").effect("displace").x(20).y(20).chain()
  .flags("layer_apply").gravity("north_west").x(20).y(20).chain()
  .overlay(new Layer().publicId("mag-glass.png")).width(330).height(215).gravity("north_west").x(38).y(38).flags("no_overflow")).useRootPath(true).generate("woman.jpg");
iOS:
Copy to clipboard
imageView.cldSetImage(cloudinary.createUrl().setUseRootPath( true).setTransformation(CLDTransformation()
  .setWidth(500).setHeight(500).setCrop("fill").chain()
  .setOverlay("woman").setWidth(500).setHeight(500).setCrop("fill").chain()
  .setWidth(200).setHeight(200).setX(20).setY(20).setCrop("crop").chain()
  .setWidth(200).setHeight(200).setOverlay("docs:zoom_map").setCrop("fill").chain()
  .setFlags("layer_apply").setEffect("displace").setX(20).setY(20).chain()
  .setFlags("layer_apply").setGravity("north_west").setX(20).setY(20).chain()
  .setOverlay("mag-glass.png").setWidth(330).setHeight(215).setGravity("north_west").setX(38).setY(38).setFlags("no_overflow")).generate("woman.jpg")!, cloudinary: cloudinary)
zoomed in image

Custom Art Effects

Any image can be used as a displacement map, even if it hasn't been specifically created for that purpose. Most of the time, using a photograph as a map will give some surreal effects, but if you use a photograph with a (semi) repeating pattern, you can actually end up with some nice new texture effects. The following interactive example allows you to combine a base picture with various image "textures":

1  Select the strength of the distortion effect:

2  Pick an image to use as a distortion effect

water pebbles concrete

3  Press the button!

Adapting Overlays to a Non-smooth Surface

Another more practical case for using the displacement effect is to make an overlay appear more realistic when placing it over an object with its own texture, making the overlay seem like its actually part of that object itself. This can be very useful for generating customized eCommerce images.

This can be achieved by using the base image itself as a displacement map for the overlay. For example, below we've added an overlay to a sweater, using the sweater itself as a displacement map for the overlay:

Ruby:
Copy to clipboard
cl_image_tag("docs/bulls.png", :transformation=>[
  {:width=>490, :opacity=>80, :crop=>"scale"},
  {:height=>2.0, :width=>1.0, :crop=>"pad"},
  {:overlay=>"docs:sweater", :effect=>"displace", :y=>-8},
  {:effect=>"trim"},
  {:underlay=>"docs:sweater", :width=>690}
  ])
PHP:
Copy to clipboard
cl_image_tag("docs/bulls.png", array("transformation"=>array(
  array("width"=>490, "opacity"=>80, "crop"=>"scale"),
  array("height"=>2.0, "width"=>1.0, "crop"=>"pad"),
  array("overlay"=>"docs:sweater", "effect"=>"displace", "y"=>-8),
  array("effect"=>"trim"),
  array("underlay"=>"docs:sweater", "width"=>690)
  )))
Python:
Copy to clipboard
CloudinaryImage("docs/bulls.png").image(transformation=[
  {'width': 490, 'opacity': 80, 'crop': "scale"},
  {'height': 2.0, 'width': 1.0, 'crop': "pad"},
  {'overlay': "docs:sweater", 'effect': "displace", 'y': -8},
  {'effect': "trim"},
  {'underlay': "docs:sweater", 'width': 690}
  ])
Node.js:
Copy to clipboard
cloudinary.image("docs/bulls.png", {transformation: [
  {width: 490, opacity: 80, crop: "scale"},
  {height: "2.0", width: "1.0", crop: "pad"},
  {overlay: "docs:sweater", effect: "displace", y: -8},
  {effect: "trim"},
  {underlay: "docs:sweater", width: 690}
  ]})
Java:
Copy to clipboard
cloudinary.url().transformation(new Transformation()
  .width(490).opacity(80).crop("scale").chain()
  .height(2.0).width(1.0).crop("pad").chain()
  .overlay(new Layer().publicId("docs:sweater")).effect("displace").y(-8).chain()
  .effect("trim").chain()
  .underlay(new Layer().publicId("docs:sweater")).width(690)).imageTag("docs/bulls.png");
JS:
Copy to clipboard
cloudinary.imageTag('docs/bulls.png', {transformation: [
  {width: 490, opacity: 80, crop: "scale"},
  {height: "2.0", width: "1.0", crop: "pad"},
  {overlay: new cloudinary.Layer().publicId("docs:sweater"), effect: "displace", y: -8},
  {effect: "trim"},
  {underlay: new cloudinary.Layer().publicId("docs:sweater"), width: 690}
  ]}).toHtml();
jQuery:
Copy to clipboard
$.cloudinary.image("docs/bulls.png", {transformation: [
  {width: 490, opacity: 80, crop: "scale"},
  {height: "2.0", width: "1.0", crop: "pad"},
  {overlay: new cloudinary.Layer().publicId("docs:sweater"), effect: "displace", y: -8},
  {effect: "trim"},
  {underlay: new cloudinary.Layer().publicId("docs:sweater"), width: 690}
  ]})
React:
Copy to clipboard
<Image publicId="docs/bulls.png" >
  <Transformation width="490" opacity="80" crop="scale" />
  <Transformation height="2.0" width="1.0" crop="pad" />
  <Transformation overlay="docs:sweater" effect="displace" y="-8" />
  <Transformation effect="trim" />
  <Transformation underlay="docs:sweater" width="690" />
</Image>
Vue.js:
Copy to clipboard
<cld-image publicId="docs/bulls.png" >
  <cld-transformation width="490" opacity="80" crop="scale" />
  <cld-transformation height="2.0" width="1.0" crop="pad" />
  <cld-transformation overlay="docs:sweater" effect="displace" y="-8" />
  <cld-transformation effect="trim" />
  <cld-transformation underlay="docs:sweater" width="690" />
</cld-image>
Angular:
Copy to clipboard
<cl-image public-id="docs/bulls.png" >
  <cl-transformation width="490" opacity="80" crop="scale">
  </cl-transformation>
  <cl-transformation height="2.0" width="1.0" crop="pad">
  </cl-transformation>
  <cl-transformation overlay="docs:sweater" effect="displace" y="-8">
  </cl-transformation>
  <cl-transformation effect="trim">
  </cl-transformation>
  <cl-transformation underlay="docs:sweater" width="690">
  </cl-transformation>
</cl-image>
.Net:
Copy to clipboard
cloudinary.Api.UrlImgUp.Transform(new Transformation()
  .Width(490).Opacity(80).Crop("scale").Chain()
  .Height(2.0).Width(1.0).Crop("pad").Chain()
  .Overlay(new Layer().PublicId("docs:sweater")).Effect("displace").Y(-8).Chain()
  .Effect("trim").Chain()
  .Underlay(new Layer().PublicId("docs:sweater")).Width(690)).BuildImageTag("docs/bulls.png")
Android:
Copy to clipboard
MediaManager.get().url().transformation(new Transformation()
  .width(490).opacity(80).crop("scale").chain()
  .height(2.0).width(1.0).crop("pad").chain()
  .overlay(new Layer().publicId("docs:sweater")).effect("displace").y(-8).chain()
  .effect("trim").chain()
  .underlay(new Layer().publicId("docs:sweater")).width(690)).generate("docs/bulls.png");
iOS:
Copy to clipboard
imageView.cldSetImage(cloudinary.createUrl().setTransformation(CLDTransformation()
  .setWidth(490).setOpacity(80).setCrop("scale").chain()
  .setHeight(2.0).setWidth(1.0).setCrop("pad").chain()
  .setOverlay("docs:sweater").setEffect("displace").setY(-8).chain()
  .setEffect("trim").chain()
  .setUnderlay("docs:sweater").setWidth(690)).generate("docs/bulls.png")!, cloudinary: cloudinary)
Adapting overlay to a surface

Final Displacements

Displacement maps can be a useful addition to your arsenal of image manipulations. They allow you to customize your images in interesting ways and add realistic effects. This capability is already being used by our customers to displace images overlays, and as shown in this post, can also be used in multiple, perhaps unexpected ways. The feature is available for use with all Cloudinary accounts, including the free tier.

Recent Blog Posts

Automation Frees Up PetRescue’s Staff to Help Pets Find Their Forever Homes

As we spend more time at home, many of us are adopting pets for the joy, companionship and a surprising range of health benefits. In Australia, where our nonprofit customer PetRescue is located, there’s a shortage of pets to adopt. Last August, the Guardian reported that dog shelters in Australia emptied and adoption fees for puppies were running as high as $AUS1800.

Read more
Cloudinary and Contentful Make Modern Content Management Easier

I am pleased to share that Cloudinary and Contentful have joined forces to further streamline the creation, processing, and delivery of online content through Cloudinary’s digital asset management (DAM) solution and advanced transformation and delivery capabilities for images and video. What’s more, the partnership delivers a headless approach to DAM. By leveraging APIs for media management tasks, marketers and developers alike benefit from an integrated stack of optimized assets for optimization and automation. As a result, page loads are fast and beautiful, and at scale—with less overhead and effort.

Read more
Introducing Cloudinary's Nuxt Module

Since its initial release in October 2016 by the Chopin brothers as a server-side framework that runs on top of Vue.js, Nuxt (aka Nuxt.js) has gained prominence in both intuitiveness and performance. The framework offers numerous built-in features based on a modular architecture, bringing ease and simplicity to web development. Not surprisingly, Nuxt.js has seen remarkable growth in adoption by the developer community along with accolades galore. At this writing, Nuxt has earned over 30K stars on GitHub and 96 active modules with over a million downloads per month. And the upward trend is ongoing.

Read more
How Quality and Quantity can go Hand in Hand

When it comes to quality versus quantity, you’ll often hear people say, “It’s the quality that counts, not the quantity”. While that’s true in many situations, there are also cases where you want both quality and quantity. You may have thousands of images on your website and you want them all to look great. This is especially important if your website allows users to upload their own content, for example, to sell their own products or services. You don't want their poor quality images to reflect badly on your brand.

Read more
Product Videos 101: What Makes Them Great?

A product’s benefits and usage, including its value proposition, features, and instructive details, are best demonstrated through video. Product-video types vary, depending on the funnel, channel, and audience, the most popular ones being demos, reviews, installation, and how-tos.

Read more
