What is Group of Pictures (GOP)?
A Group of Pictures (GOP) is a sequence of video frames that are grouped together for compression and efficient transmission in video encoding. It’s a foundational concept in codecs like H.264 and MPEG-2.
Essentially, a GOP contains various types of frames—such as I-frames, P-frames, and B-frames—that work in tandem to balance quality and compression. The idea is to leverage the similarities between consecutive frames to reduce the data required, thereby making video files smaller and faster to stream.
Key Components
A GOP sequence generally includes three types of frames:
- I-Frames (Intra-coded): These keyframes contain a complete image and do not rely on other frames for compression.
- P-Frames (Predictive-coded): These frames are compressed by predicting and encoding only the changes from the previous I-frame or P-frame.
- B-Frames (Bi-directional predictive-coded): These frames use both previous and subsequent frames for prediction, allowing for even higher compression rates.
How Group of Pictures Works Within Video Compression
In video compression, a Group of Pictures plays a pivotal role by segmenting video frames into manageable chunks that optimize storage and transmission. The GOP structure leverages different types of frames to minimize redundancy and maximize efficiency.
To paint a clear picture, I-frames are standalone frames that serve as reference points, much like key reference slides in a presentation. These are fully self-contained and don’t rely on any other frames to be reconstructed. On the other hand, P-frames and B-frames depend on previously decoded frames and even future frames (in the case of B-frames) to encode the differences. This dependency allows for a significant reduction in the amount of data needed for each frame.
Video codecs can achieve an impressive balance between compression efficiency and image quality by weaving I-frames, P-frames, and B-frames into a GOP. For instance, the I-frame sets the stage with high-quality reference data, while subsequent P-frames and B-frames fill in the motion changes between those reference points. The strategy creates a compact and efficient representation of the video data while minimizing quality loss.
In practice, this means streaming platforms can deliver smooth, high-quality video content without taxing your bandwidth. Whether you’re watching a live sports event or a high-definition movie, the GOP structure ensures fluid playback and quick data transmission, making it a cornerstone of modern video compression techniques.

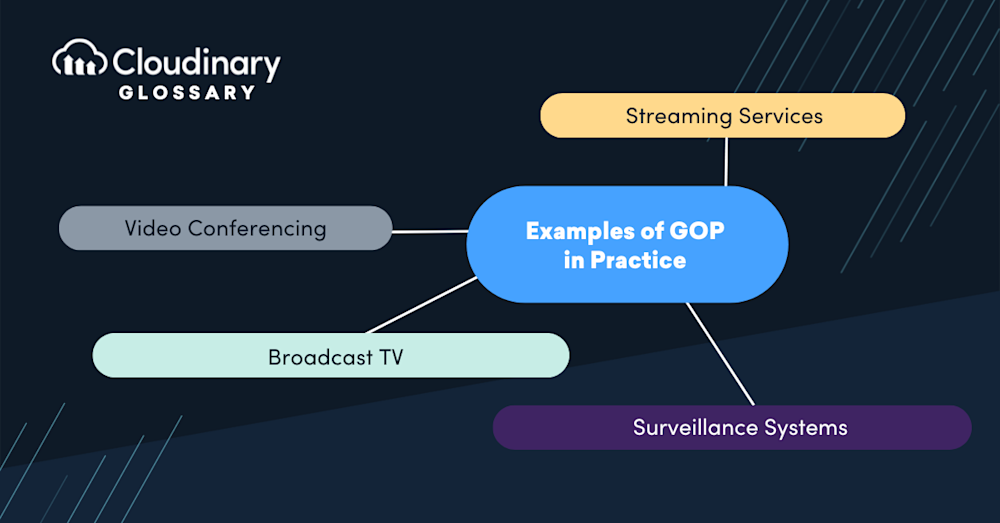

Examples of GOP in Practice
Group of Picture structures are widely used in various applications to strike a balance between file size and video quality. Here are some practical examples of where GOP plays a crucial role:
- Streaming Services: Platforms like Netflix and YouTube utilize GOP structures to ensure videos are compressed efficiently for smoother streaming while maintaining high quality.
- Video Conferencing: Applications such as Zoom and Microsoft Teams employ GOP to reduce latency and bandwidth usage so that real-time video communication is both clear and seamless.
- Broadcast TV: Digital TV broadcasting utilizes GOP to make sure the high-resolution content is transmitted efficiently without overwhelming the available bandwidth.
- Surveillance Systems: Security cameras often use GOP to compress large amounts of video data, making storing and reviewing footage easier without losing critical details.
Pros and Cons of GOP
Benefits
- High Compression Rates: Utilizing P-frames and B-frames within a GOP significantly reduces file size while retaining reasonable video quality.
- Bandwidth Efficiency: The reduced file size allows for more efficient bandwidth usage, which is essential for streaming and broadcasting.
- Storage Savings: Lower file sizes translate to decreased storage requirements, essential for video archiving and distribution.
Drawbacks
- Complexity in Editing: Adding, removing, or editing specific frames becomes complex due to dependencies among frames within a GOP.
- Delay in Seeking: Long GOPs can introduce seeking delays as playback devices may need to decode several frames to reach a specific point.
- Potential Quality Loss: If compression settings are too aggressive, the dependence on preceding and succeeding frames may degrade visual quality during playback.
The Bottom Line
The Group of Pictures (GOP) structure is a cornerstone of modern video compression, enabling efficient data reduction while maintaining a balance between quality and file size. Understanding the GOP’s role and structure gives valuable insights into video encoding and the trade-offs in optimizing video for different applications such as streaming, broadcasting, and storage.
Despite its complexities and potential drawbacks, the GOP remains essential in achieving high-quality, efficient video compression. Whether you’re a video professional or simply someone curious about how digital video works, comprehending the intricacies of GOP can enhance your understanding and appreciation of the technology behind modern video experiences.
