Video Compression Techniques: Enhancing Quality and Performance

By 2025, video will make up almost 82% of consumer internet traffic; this shows how much we depend on smooth streaming with clear pictures, fast playback, and minimal buffering, even when mobile. Still, big video files can make delivery times longer, put a strain on computers, and raise the cost of data.

Video compression techniques help cut down on file sizes while keeping the quality of the video. Fast-loading, smaller files improve the viewing experience and encourage viewers to stay longer. But how can you implement these into your project to balance quality and compression? More and more people are using 4K and HDR files, which makes video compression techniques even more important.

In this article, we’ll go over tried and true methods, point out what works, and shed light on what’s coming up next. By getting good at these video compression techniques, you can improve the streaming experience for your users and do well in a very competitive market.

What is Video Compression?

Video compression reduces the size of raw video files by removing unnecessary or redundant data. This makes them significantly easier to manage and use. An hour of uncompressed video can easily consume hundreds of gigabytes, making things difficult for streaming services or companies that have to handle thousands of users simultaneously.

Lossless and lossy compression are the two main types of video compression. As no image data is lost in lossless compression, it’s perfect for archiving and professional work requiring pristine image quality. However, you can only reduce file sizes so much using lossless approaches. Lossy compression makes files smaller and easier to handle by intentionally removing some data that is less noticeable to the human eye.

Choosing the right compression method can make a big difference whether you are sending a high framerate game highlight or an educational lesson to people all over the world. When used correctly, these methods help lower the cost of storage, speed up loading times, and keep things running smoothly.

Types of Video Compression Techniques

Video streaming standards today are based on a few main compression methods. Inter-frame compression looks at the differences between frames that come right after each other. These video compression techniques impact a wide range of media, including instructional and high-definition entertainment, making it possible to give users better experiences on a wider range of networks and devices.

Spatial (Intra-Frame) Compression

Spatial compression reduces data within individual video frames by locating and removing unnecessary colors or pixels. This process takes each frame as a separate frame and compresses it separately to keep the quality of the image. By looking at patterns and similarities between pixels in a frame, spatial compression reduces file size while keeping information.

This compression method is commonly used in high-quality video and still image standards like JPEG. Like JPEG images, video codecs compress each frame spatially, minimizing redundancy within the frame to achieve efficient storage. This also ensures picture quality remains high, making it suitable for situations demanding image clarity.

Temporal (Inter-Frame) Compression

Temporal compression cuts down on video data by finding patterns between frames that are shown one after the other. This method doesn’t encode each frame in its entirety, it encodes a full keyframe followed by delta frames that only record the changes from the frames that came before them. For instance, in scenes with backgrounds that don’t change, only the moving parts are updated; the parts that don’t change use data from earlier scenes.

Video streaming uses this method because it significantly shrinks file sizes by focusing on the differences between frames. By sending only the differences between frames, temporal compression makes better use of bandwidth and speeds up streaming.

However, temporal compression can make video editing harder because frames need information from earlier frames to be rebuilt. Even so, the fact that it can keep the quality of the video while lowering the amount of data needed makes it essential for fast video delivery.

Bitrate Control (CBR and VBR)

Video compression relies heavily on bitrate control, which directly influences the final video quality and file size. There are two main types of bitrate encoding: Constant Bitrate (CBR) and Variable Bitrate (VBR).

CBR keeps the bitrate the same throughout the video, so the data flows smoothly. This method gives stable quality, but it can also waste time and data on simple scenes that don’t need it, making files bigger without improving quality. CBR is often used in live streaming because it’s reliable and works with many systems.

In contrast, VBR changes the bitrate based on how complicated the scene is, giving more data to scenes that are more complicated and less to scenes that are simpler.

This dynamic distribution keeps quality high in scenes with lots of details while minimizing file size. However, VBR can lead to changing data rates, which could cause buffering if the viewer’s internet connection varies too.

The choice between CBR and VBR is situational and can vary depending on the context. CBR is generally preferred for live streaming because of its more consistent bandwidth consumption. For storing videos, VBR is a good choice as it provides a compromise between quality and file size efficiency.

Quantization

Quantization makes data simpler so that files are smaller by lowering the accuracy of colors and features in video frames. It basically shrinks the data by connecting a group of values that are related to a single value that stands for the group.

Lossy compression methods, like JPEG for pictures and different video codecs, depend on quantization. While it gets rid of some data, it uses the way our visual systems work to keep the quality of what we see. It achieves compression with little apparent loss by taking away information that viewers are less likely to notice.

By using quantization, file sizes are significantly reduced, making it easier to store and send media. However, excessive quantization creates visible flaws like blockiness or blurring, especially in areas with small features. Adjusting compression settings is important to keep the quality of the images while reducing the file size as much as possible.

Resolution and Frame Rate Reduction

Reducing video resolution and frame rate are two effective strategies for reducing file sizes while preserving usability. When you scale down from 4K (3840 x 2160 pixels) to 1080p (1920 x 1080 pixels), the quality, the amount of image data in each frame goes down. This makes file sizes smaller because it stores and sends less information, and can result in a better user experience for users who don’t need (or can’t view) higher resolution videos.

Reducing the frame rate, such as from 60fps to 30fps, lowers the number of frames displayed per second. Although higher frame rates improve the smoothness of motion, lower frame rates are generally sufficient for things like slideshows, presentations, or footage with limited movement. This method drastically shrinks file sizes, proving especially useful for space-saving on devices with limited storage and for efficient data streaming.

Reducing resolution and frame rate creates a solution accessible to all devices and viewers, resulting in a less visually detailed but universally compatible product. Smaller files for videos viewed on smaller screens or slower networks are possible without sacrificing apparent quality. This flexible approach to video compression improves performance and reduces storage/bandwidth costs.

Entropy Encoding (Run-Length Encoding and Huffman Coding)

Entropy encoding is a way to compress data without losing any of its quality. It shrinks files by efficiently storing data, particularly recurring patterns. This method ensures data integrity during compression, making it perfect for security-sensitive applications.

The Run-Length Encoding (RLE) and Huffman Coding are two popular ways to encode randomness. RLE shrinks data by changing a string of similar values with a single value and a count. This reduces the size of sequences that contain repeated elements. For instance, “A5,” (indicating that “A” appears five times) would be saved in a sequence like “AAAAAA.”

In contrast, Huffman Coding uses codes of varying lengths for each input character, with shorter codes representing fewer common characters and longer codes representing more common ones. This method cuts down on the usual code length, which makes data representation more efficient.

To get the best compression without losing quality, entropy encoding is often used with other methods like quantization and shift coding in video compression. Once steps like quantization have taken out features that aren’t important, entropy encoding easily stores the rest of the data, making it even smaller. This layered method makes sure that videos keep their visual quality while achieving large file size reductions, which makes storage and transfer more efficient.

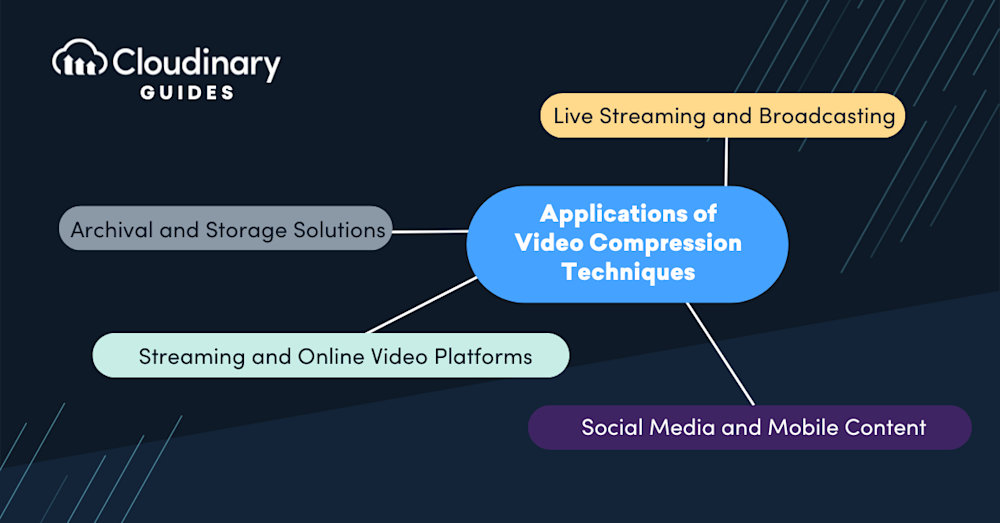

Practical Applications of Video Compression Techniques

Video compression methods are important for many uses, each with its specifications for quality, file size, and speed. These methods make saving, transfer, and playback as efficiently as possible, depending on the device or goal.

• Streaming and Online Video Platforms: Netflix and YouTube are just two of many streaming services that use a combination of temporal compression, resolution scaling, and VBR to provide high-quality videos with decreased file sizes.
• Social Media and Mobile Content: Space and time compression are important factors for social media platforms like Instagram and TikTok to serve videos quickly. To keep file sizes as small as possible, mobile-optimized videos often use smaller resolutions (like 720p) and frame rates (like 30 fps). These changes make sure that videos run fast, use less data, and fit into mobile devices with limited storage, making them useful for people who are always on the go.
• Archival and Storage Solutions: Lossless compression methods, such as entropy encoding, keep the original quality of video files when they are stored for a long time. Archival solutions often use codecs and forms like ProRes and DNxHR to keep all the details while making file handling easier for professional processes.
• Live Streaming and Broadcasting: When live streaming, consistency is crucial. CBR compression keeps the quality fixed and stops delay or lag. To get even better results, you can use temporal compression to make files smaller and use less bandwidth while still keeping visual clarity. These methods work especially well for live shows where dependability is essential.

Best Practices for Implementing Video Compression Techniques

It’s important to use video compression methods correctly if you want to offer high-quality content while also reducing file size and making sure workflows run smoothly. Let’s go over some of the best ways to be efficient without lowering the quality of your work:

• Balance Compression and Quality for Target Platforms: Compression levels should be balanced with platform-specific quality requirements to ensure the optimal viewer experience. Too much compression can cause pixelation and artifacts, which impact overall video quality. VBR is a great way to change bit rates based on the complexity of the scene, letting you get better quality in scenes with a lot of movement (and less in more static scenes).
• Optimize for Device Compatibility: The ability to work with many devices is incredibly important–not all of your users will be on the same device, or even screen size. For optimal device support and superior compression efficiency on web platforms, go with universal codecs like H.264 or VP9. Additionally, you can change the quality and frame rate to fit the devices your audience is using. For example, 1080p at 30fps for mobile streaming or 720p for quick, light watching on slower connections.
• Leverage Pre-Processing for Improved Compression Results: Noise reduction, deinterlacing, and color fixing are all pre-processing methods that can improve the efficiency of compression. When footage is free of noise and has been color-adjusted, it makes compression significantly easier.
• Use Cloud Services for Scalability: Cloudinary has powerful cloud-based options for delivering videos in real-time, compressing them, and changing their format. With the Cloudinary Video API, hard jobs like transcoding so coders can focus on making videos. Cloudinary lets you change the compression levels and supports multiple formats to make sure that your files work on all devices and systems. Plus, it’s a powerful tool for media scalability because it can improve video content based on user bandwidth and device type.

Wrapping Up

For smaller file sizes, faster load times, and the best media delivery across all devices, you need to use effective video compression methods. Developers can make sure that streaming and storing are efficient without sacrificing visual quality by using techniques like spatial and temporal compression, VBR encoding, and changing the resolution.

It’s important to understand the differences between compression methods, especially when working with different video formats and sizes. Developers can create performance-efficient content that satisfies quality standards by customizing compression algorithms to platform restrictions and audience expectations.

To make this process easier, Cloudinary offers a powerful platform for delivering videos in real time, compressing them, and changing their formats–all at scale. By using these kinds of services, coders can make their work easier and get high-quality, fast video compression that works better on all platforms and devices.
