What Is Image Contrast Enhancement?

Image contrast enhancement is a pivotal process in digital image processing that aims to improve the visibility and perceptibility of an image by adjusting and amplifying the difference in the brightness and color of the elements within the image. This manipulation ensures that the distinct features within an image are more easily distinguishable, facilitating better visual interpretation for both automated systems and human observers.

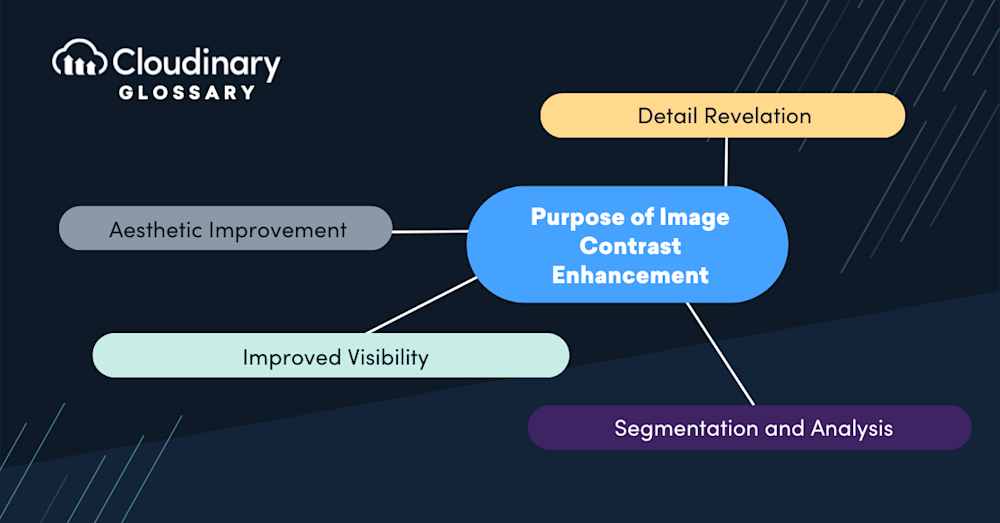

What Is The Purpose of Image Contrast Enhancement?

The primary purpose of image contrast enhancement is to improve the visual quality and interpretability of images. This can be broken down into several specific objectives:

  • Detail Revelation: Enhances low-contrast areas to reveal hidden details.
  • Improved Visibility: Makes features more salient, facilitating better human and machine interpretation.
  • Segmentation and Analysis: Prepares images for more accurate segmentation and analysis in various applications.
  • Aesthetic Improvement: Provides visually appealing images by adjusting brightness and contrast optimally.
    Supporting Image

    Image Contrast Enhancement Techniques and Methods

    There are several techniques and methods for enhancing image contrast, each suited to different images and applications:

    Histogram Equalization

    • Global Histogram Equalization (GHE): This method spreads out the intensity values of an image’s histogram to utilize the full range of possible values, enhancing the overall contrast.
    • Adaptive Histogram Equalization (AHE): This variant improves local contrast and brings out more detail by applying histogram equalization to smaller regions within the image.
    • Contrast Limited Adaptive Histogram Equalization (CLAHE): This method is designed to overcome noise amplification issues in AHE by limiting the contrast enhancement in homogeneous areas.

    Linear Contrast Stretching

    • Min-Max Stretching: Involves transforming the intensity values to cover the full range available, usually from 0 to 255 in an 8-bit image.
    • Mean and Standard Deviation Stretching: Adjusts image contrast based on the mean and standard deviation of pixel intensities, ensuring a balanced distribution around the mean value.

    Gamma Correction

    • Power-Law Transformations: Utilizes a parameter called gamma to correct the brightness level. Gamma <1 enhances images with dark regions, while gamma >1 enhances images with light regions.

    Piecewise Linear Contrast Stretching

    • Contrast Stretching with Multiple Breakpoints: Divides the intensity range into segments and applies different linear transformations to each. This allows more nuanced adjustments to different parts of the image.

    Logarithmic and Exponential Transformations

    • Log Transformation: Useful for enhancing details in the darker regions of an image.
    • Exponential Transformation: Helps enhance bright areas by applying exponential scaling.

    Unsharp Masking

    • Enhances contrast by increasing the brightness difference around edges. This method sharpens the image and makes details more prominent.

    Retinex Theory

    • Single Scale Retinex (SSR) and Multi-Scale Retinex (MSR): Aims to mimic human visual perception by enhancing both global and local contrast in varied illumination conditions.

    Types of Image Contrast

    • Global Contrast: Refers to the overall difference between the darkest and lightest parts of the entire image.
    • Local Contrast: Pertains to the contrast within specific regions or objects in the image.
    • Dynamic Range: The ratio between the maximum and minimum intensity values the image can represent.
      main banner

      Benefits and Drawbacks of Image Contrast Enhancement

      Benefits

      • Enhanced Perception: Improved interpretability and visibility for both human observers and machine vision systems.
      • Data Utilization: Makes it easier to extract relevant information from low-contrast images.
      • Better Analysis: Facilitates more accurate image analysis, diagnosis, and classification in various fields.
      • Adaptive: Can be tailored to specific needs, whether it’s emphasizing certain features or balancing overall image quality.

      Drawbacks

      • Noise Amplification: Some methods, like simple histogram equalization, can amplify noise, making the image appear grainy.
      • Loss of Detail: Incorrect application can lead to loss of essential details, particularly in highlight and shadow regions.
      • Over-Enhancement: Over-processing can lead to unnatural appearance and artifacts.
      • Computational Cost: More advanced techniques can be computationally intensive, requiring significant processing power and time.

      Last Thoughts

      Image contrast enhancement is an invaluable tool in the realm of image processing, helping to bring clarity and detail to otherwise obscure visuals. By leveraging a variety of techniques and methods, one can significantly improve the perceptibility and quality of an image for a multitude of applications across diverse fields, from medical imaging to photography and beyond.

      However, it is essential to choose the appropriate method and apply it judiciously to avoid potential drawbacks such as noise amplification and loss of detail. As the field continues to evolve, so too will the sophistication and efficacy of image contrast enhancement techniques, promising ever-improving visual representation and analysis capabilities.

Additional Resources You May Find Useful:

QUICK TIPS
Colby Fayock
Cloudinary Logo Colby Fayock

In my experience, here are tips that can help you better optimize image contrast enhancement techniques:

  1. Combine multiple methods for complex images
    Instead of relying on a single technique, blend methods like CLAHE and gamma correction to enhance both global and local contrast without over-amplifying noise.
  2. Perform contrast enhancement in the LAB color space
    Focus adjustments on the lightness (L) channel to prevent color distortion, which can occur when working directly in RGB.
  3. Use guided filtering to suppress noise
    After applying enhancement, use a guided filter to preserve edges while removing amplified noise, particularly in medical and satellite imagery.
  4. Analyze histogram patterns before processing
    A detailed histogram analysis can guide your choice of enhancement technique, ensuring methods like histogram equalization are not applied where they might cause over-enhancement.
  5. Leverage contrast enhancement for HDR imaging
    If dealing with high dynamic range (HDR) images, apply local contrast enhancement techniques to prevent flattening the scene’s depth and texture.
  6. Implement perceptually uniform color spaces
    For professional and precise adjustments, use perceptually uniform spaces like CIELAB or CAM02-UCS to maintain visual realism across diverse lighting conditions.
  7. Automate parameter selection using AI
    Use machine learning algorithms to dynamically adjust parameters like gamma values or CLAHE clip limits based on the image’s content and lighting conditions.
