JavaScript SDK video transformations

Overview

After uploading videos to Cloudinary, they can be transformed in many ways.

The syntax for transforming and delivering videos is generally similar to that for images, and you can apply the majority of available image transformations to video as well. For example, you can resize, crop, rotate, set video quality and format or use auto quality and/or auto format, add text or image overlays to your videos, and more.

There are also a number of special options you can use for transforming and delivering video content. For example, you can adjust their size, shape, speed, duration, quality, and appearance. There are also some features that are specific to audio.

This section introduces you to the basics of video transformations using the @cloudinary/url-gen package. For complete details on all video transformation functionality, see Video transformations and the Transformation URL API reference.

If you haven't yet installed the JavaScript SDK, you might want to jump to the quickstart guide first.

See also: JavaScript image transformations

Video transformation functionality

In addition to transformation features that are equally relevant for images and video, such as resizing, cropping, rotating, adding text or image overlays, and setting video quality or format, there are a variety of special transformations you can use for video. For example, you can:

Tip
Elsewhere in the documentation, where you see the multi-tabbed transformation code examples, select the JS tab and the js-url-gen library.

Direct URL building

You can build a video URL by:

  1. Configuring your Cloudinary instance.
  2. Instantiating a CloudinaryVideo object for the video you want to deliver, using cld.video().
  3. Calling the toURL() method of the CloudinaryVideo class to return the delivery URL:
Copy to clipboard
import {Cloudinary} from "@cloudinary/url-gen";

// Create and configure your Cloudinary instance.
const cld = new Cloudinary({
  cloud: {
    cloudName: 'demo'
  }
});

// Instantiate a CloudinaryVideo object for the video with public ID, 'elephants'.
const myVideo = cld.video('elephants');

// Get the URL of the video.
const myURL = myVideo.toURL();

The resulting URL, myURL, is:

Specifying a version of your video to deliver

You can specify a particular version of your video to deliver by using the setVersion method. The version is added to the delivery URL as explained in Asset versions.

For example, to specify version 1510668637 of the elephants video from the example above:

Copy to clipboard
myVideo.setVersion(1510668637);

The resulting URL is now:

Transforming your video

Videos are transformed by adding serialized transformation instructions to the video delivery URL. For example, to scale your video to a width of 400 pixels, add c_scale,w_400.

https://res.cloudinary.com/demo/video/upload/c_scale,w_400/elephants.mp4

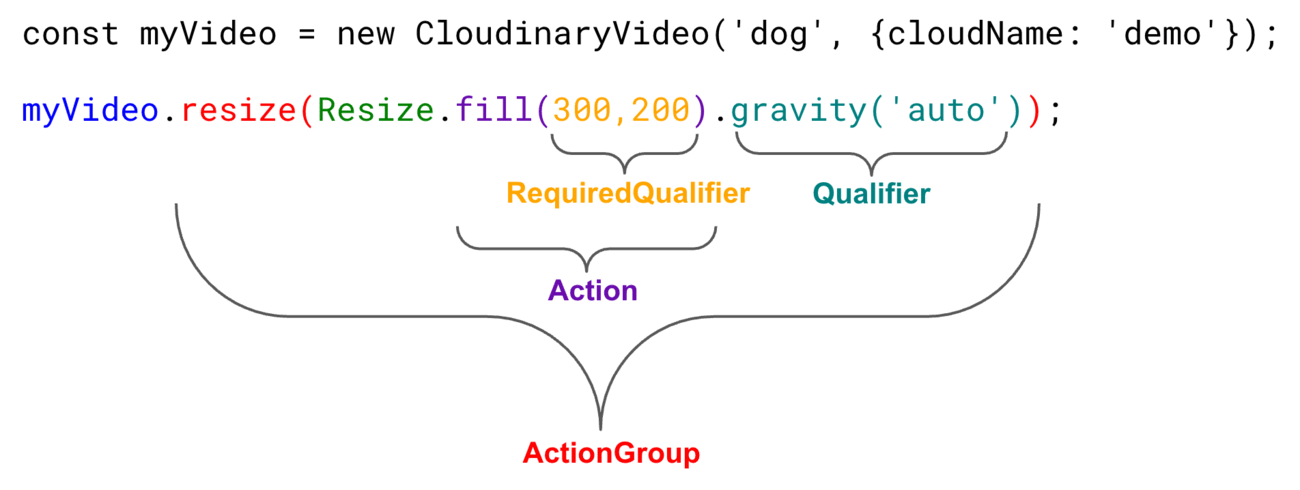

Using the @cloudinary/url-gen package, you transform a video by performing one or more transformation actions on the CloudinaryVideo object (see the syntax overview). Remember to import the actions that you are using:

Copy to clipboard
import {Cloudinary} from "@cloudinary/url-gen";

// Import the scale mode from the resize action.
import {scale} from "@cloudinary/url-gen/actions/resize";

// Create and configure your Cloudinary instance.
const cld = new Cloudinary({
  cloud: {
    cloudName: 'demo'
  }
});

// Instantiate a CloudinaryVideo object for the video with public ID, 'elephants'.
const myVideo = cld.video('elephants');

// Scale the video to a width of 400 pixels.
myVideo.resize(scale().width(400));

// Get the URL of the video.
const myURL = myVideo.toURL();

The resulting URL is:

Video transformation examples

This section provides examples of using the @cloudinary/url-gen package to apply some of the video transformation features mentioned in the previous section.

Example 1:

The following example resizes the elephants video to 20% of it's original size and rotates it by 20 degrees. It also adds a semi-transparent cloudinary logo in the bottom right corner, using a southeast gravity with adjusted x and y coordinates to reach the corner of the rotated video.

Copy to clipboard
import {Cloudinary} from "@cloudinary/url-gen";
import {Transformation} from "@cloudinary/url-gen";
import {scale} from "@cloudinary/url-gen/actions/resize";
import {byAngle} from "@cloudinary/url-gen/actions/rotate";
import {source} from "@cloudinary/url-gen/actions/overlay";
import {opacity} from "@cloudinary/url-gen/actions/adjust";
import {image} from "@cloudinary/url-gen/qualifiers/source";
import {Position} from "@cloudinary/url-gen/qualifiers/position";
import {compass} from "@cloudinary/url-gen/qualifiers/gravity";


// Create and configure your Cloudinary instance.
const cld = new Cloudinary({
  cloud: {
    cloudName: 'demo'
  }
});

// Use the video with public ID, 'elephants'.
const myVideo = cld.video('elephants');

// Apply the transformation.
myVideo
.resize(scale().width(0.2))
.rotate(byAngle(20))
.overlay(
  source(
    image('cloudinary_icon')
    .transformation(new Transformation()
      .resize(scale().width(60))
      .adjust(opacity(50))
      )
  )
  .position(new Position().gravity(compass('south_east')).offsetX(60).offsetY(15))
);

// Get the URL of the video.
const myURL = myVideo.toURL();

The resulting URL is:

Example 2:

The following example adjusts the brightness of a skiing video, and sets its radius to max in order to give a telescope-like effect. It then appends a copy of the video in reverse, and then plays forward again, but in slow motion.

Copy to clipboard
import {Cloudinary} from "@cloudinary/url-gen";
import {Transformation} from "@cloudinary/url-gen";
import {reverse,accelerate} from "@cloudinary/url-gen/actions/effect";
import {brightness} from "@cloudinary/url-gen/actions/adjust";
import {max} from "@cloudinary/url-gen/actions/roundCorners";
import {concatenate} from "@cloudinary/url-gen/actions/videoEdit";
import {Concatenate} from "@cloudinary/url-gen/qualifiers/concatenate";


// Create and configure your Cloudinary instance.
const cld = new Cloudinary({
  cloud: {
    cloudName: 'demo'
  }
});

// Use the video with public ID, 'ski_jump'.
const myVideo = cld.video('ski_jump');

// Apply the transformation.
myVideo
  .videoEdit(concatenate(Concatenate.videoSource('ski_jump').transformation(new Transformation().effect(reverse()))))
  .videoEdit(concatenate(Concatenate.videoSource('ski_jump').transformation(new Transformation().effect(accelerate(-50)))))
  .adjust(brightness(10))
  .roundCorners(max());

// Get the URL of the video.
const myURL = myVideo.toURL();

The resulting URL is:
