Transformations on 3D models

Cloudinary supports 3D models in the FBX and glTF formats that are uploaded as a single zip file. Some transformations are supported on the bundle as a whole and these are detailed below. No transformations are currently supported on its contained assets.

On this page:

Generating a 360 animated image from a 3D model
Generating a 360 video from a 3D model
Generating an image from a 3D model
Applying Draco compression to glTF files
Delivering FBX files as glTF

Two models are used in the examples below:

DamagedHelmet3D.gltz: a zip file, uploaded as an image resource type, containing a glTF file and other associated files.
foyer-table.fbxz: a zip file, uploaded as an image resource type, containing an FBX file and other associated files. [© HippoStance]

Generating a 360 animated image from a 3D model

To generate a 360 animated image from a 3D model, use the animated flag and specify a file format that supports animation, such as GIF. You can do this either by defining the file extension (format in SDKs), or by adding the fetch_format parameter (f in URLs). The following example generates a 360 animated GIF from a glTF model of a helmet (in addition to applying other image transformations):

URL Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

URL:

https://res.cloudinary.com/demo/image/upload/f_gif/ar_1,b_rgb:a17ec5,c_fill,fl_animated,h_200/DamagedHelmet3D

Ruby:

cl_image_tag("DamagedHelmet3D", :transformation=>[
  {:fetch_format=>"gif"},
  {:aspect_ratio=>"1", :background=>"#a17ec5", :flags=>"animated", :height=>200, :crop=>"fill"}
  ])

PHP:

cl_image_tag("DamagedHelmet3D", array("transformation"=>array(
  array("fetch_format"=>"gif"),
  array("aspect_ratio"=>"1", "background"=>"#a17ec5", "flags"=>"animated", "height"=>200, "crop"=>"fill")
  )))

Python:

CloudinaryImage("DamagedHelmet3D").image(transformation=[
  {'fetch_format': "gif"},
  {'aspect_ratio': "1", 'background': "#a17ec5", 'flags': "animated", 'height': 200, 'crop': "fill"}
  ])

Node.js:

cloudinary.image("DamagedHelmet3D", {transformation: [
  {fetch_format: "gif"},
  {aspect_ratio: "1", background: "#a17ec5", flags: "animated", height: 200, crop: "fill"}
  ]})

Java:

cloudinary.url().transformation(new Transformation()
  .fetchFormat("gif").chain()
  .aspectRatio("1").background("#a17ec5").flags("animated").height(200).crop("fill")).imageTag("DamagedHelmet3D");

JS:

cloudinary.imageTag('DamagedHelmet3D', {transformation: [
  {fetchFormat: "gif"},
  {aspectRatio: "1", background: "#a17ec5", flags: "animated", height: 200, crop: "fill"}
  ]}).toHtml();

jQuery:

$.cloudinary.image("DamagedHelmet3D", {transformation: [
  {fetch_format: "gif"},
  {aspect_ratio: "1", background: "#a17ec5", flags: "animated", height: 200, crop: "fill"}
  ]})

React:

<Image publicId="DamagedHelmet3D" >
  <Transformation fetchFormat="gif" />
  <Transformation aspectRatio="1" background="#a17ec5" flags="animated" height="200" crop="fill" />
</Image>

Vue.js:

<cld-image publicId="DamagedHelmet3D" >
  <cld-transformation fetchFormat="gif" />
  <cld-transformation aspectRatio="1" background="#a17ec5" flags="animated" height="200" crop="fill" />
</cld-image>

Angular:

<cl-image public-id="DamagedHelmet3D" >
  <cl-transformation fetch-format="gif">
  </cl-transformation>
  <cl-transformation aspect-ratio="1" background="#a17ec5" flags="animated" height="200" crop="fill">
  </cl-transformation>
</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Transform(new Transformation()
  .FetchFormat("gif").Chain()
  .AspectRatio("1").Background("#a17ec5").Flags("animated").Height(200).Crop("fill")).BuildImageTag("DamagedHelmet3D")

Android:

MediaManager.get().url().transformation(new Transformation()
  .fetchFormat("gif").chain()
  .aspectRatio("1").background("#a17ec5").flags("animated").height(200).crop("fill")).generate("DamagedHelmet3D");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setTransformation(CLDTransformation()
  .setFetchFormat("gif").chain()
  .setAspectRatio("1").setBackground("#a17ec5").setFlags("animated").setHeight(200).setCrop("fill")).generate("DamagedHelmet3D")!, cloudinary: cloudinary)

Generating a 360 video from a 3D model

To generate a 360 video from a 3D model, use the animated flag and specify a video file format, such as MP4. You can do this either by defining the file extension (format in SDKs), or by adding the fetch_format parameter (f in URLs). The following example generates a 360 video from an FBX model of a foyer table (in addition to applying other image transformations):

https://res.cloudinary.com/demo/image/upload/f_mp4/b_rgb:d5d2ca,h_300,fl_animated/docs/foyer-table

3D model zip files are uploaded as image types, so make sure you set the resource_type parameter to image when implementing the video tag:

Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

Ruby:

cl_video_tag("docs/foyer-table",
  :resource_type=>"image",
  :transformation=>[
    {:fetch_format=>"mp4"},
    {:background=>"#d5d2ca", :height=>300, :flags=>"animated", :crop=>"scale"}])

PHP:

cl_video_tag("docs/foyer-table", array(
"resource_type"=>"image",
"transformation"=>array(
  array("fetch_format"=>"mp4"),
  array("background"=>"#d5d2ca", "height"=>300, "flags"=>"animated", "crop"=>"scale")
));

Python:

CloudinaryVideo("docs/foyer-table").video(resource_type = "image",
 transformation =
        [{'fetch_format': "mp4"},
         {'background': "#d5d2ca", 'height': 300, 'flags': "animated"}])

Node.js:

cloudinary.video("docs/foyer-table",
    {resource_type: "image",
     transformation: [
       {fetch_format: "mp4"},
       {background: "#d5d2ca", height: 300, flags: "animated", crop: "scale"}]}
    )

Java:

cloudinary.url().transformation(new Transformation()
    .fetch_format("mp4").chain()
    .background("#d5d2ca").height(300).flags("animated").crop("scale")).resourceType("image")
    .videoTag("docs/foyer-table");

JS:

cloudinary.videoTag('docs/foyer-table', resource_type: "image", {transformation: [
  {fetchFormat: "mp4"},
  {background: "#d5d2ca", height: 300, flags: "animated", crop: "scale"}
  ]}).toHtml();

jQuery:

$.cloudinary.video("docs/foyer-table", {resource_type: "image", transformation: [
  {fetch_format: "mp4"},
  {background: "#d5d2ca", height: 300, flags: "animated", crop: "scale"}
  ]})

React:

<Video publicId="docs/foyer-table" resourceType="image">
  <Transformation fetchFormat="mp4" />
  <Transformation background="#d5d2ca" height="300" flags="animated" crop="scale" />
</Video>

Vue.js:

js
<cld-video publicId="docs/foyer-table" resourceType="image">
  <cld-transformation fetchFormat="mp4" />
  <cld-transformation background="#d5d2ca" height="300" flags="animated" crop="scale" />
</cld-video>

Angular:

<cl-video public-id="docs/foyer-table" resource-type="image">
  <cl-transformation fetch-format="mp4">
  </cl-transformation>
  <cl-transformation background="#d5d2ca" height="300" flags="animated" crop="scale">
  </cl-transformation>
</cl-video>

.Net:

cloudinary.Api.UrlVideoUp.Transform(new Transformation()
    .FetchFormat("mp4").Chain()
    .Background("#d5d2ca").Height(300).Flags("animated").Crop("scale")).ResourceType("image")
    .BuildVideoTag("docs/foyer-table");

Android:

MediaManager.get().url().transformation(new Transformation()
  .fetchFormat("mp4").chain()
  .background("#d5d2ca").height(300).flags("animated").crop("scale")).resourceType("image").generate("docs/foyer-table");

iOS:

cloudinary.createUrl().setResourceType("image").setTransformation(CLDTransformation()
  .setFetchFormat("mp4").chain()
  .setBackground("#d5d2ca").setHeight(300).setFlags("animated").setCrop("scale")).generate("docs/foyer-table")

Generating an image from a 3D model

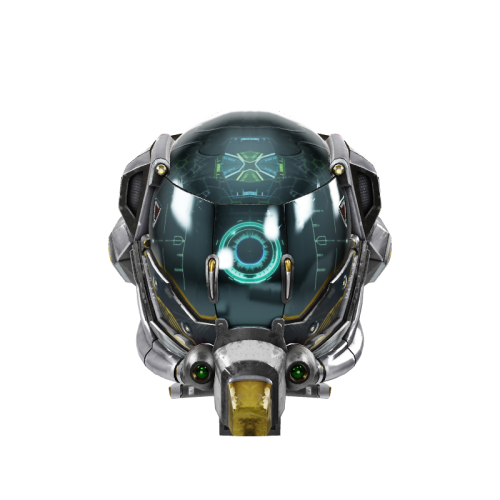

You can generate a single image from a 3D model by setting the fetch_format parameter in SDKs (f in URLs) to an image format such as PNG or JPG, or by defining the file extension (format in SDKs) as appropriate.

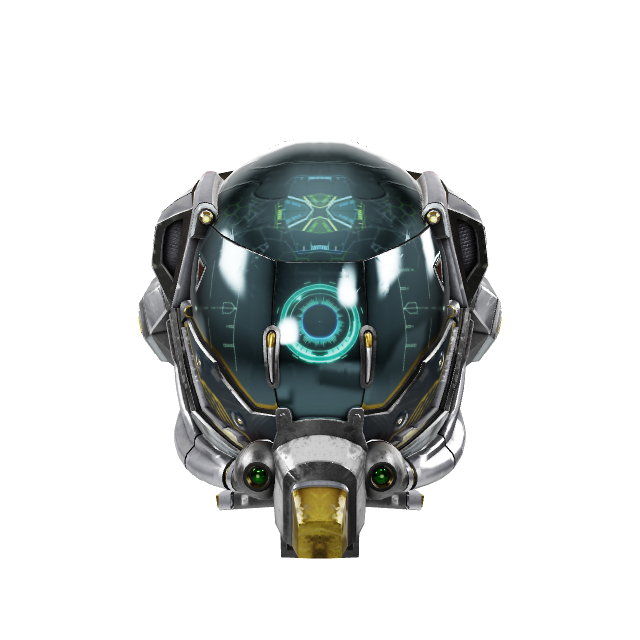

For example, the DamagedHelmet3D.gltz file can be requested as a PNG file by setting the fetch_format parameter to png, as follows:

Using the URL syntax:
Copy to clipboard
https://res.cloudinary.com/demo/image/upload/f_png/DamagedHelmet3D

Using the SDK syntax:

Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

Ruby:

cl_image_tag("DamagedHelmet3D", :fetch_format=>"png")

PHP:

cl_image_tag("DamagedHelmet3D", array("fetch_format"=>"png"))

Python:

CloudinaryImage("DamagedHelmet3D").image(fetch_format="png")

Node.js:

cloudinary.image("DamagedHelmet3D", {fetch_format: "png"})

Java:

cloudinary.url().fetch_format("png").imageTag("DamagedHelmet3D");

JS:

cloudinary.imageTag('DamagedHelmet3D', {fetchFormat: "png"}).toHtml();

jQuery:

$.cloudinary.image("DamagedHelmet3D", {fetch_format: "png"})

React:

<Image publicId="DamagedHelmet3D" fetchFormat="png">

</Image>

Vue.js:

js
<cld-image publicId="DamagedHelmet3D" fetchFormat="png">

</cld-image>

Angular:

<cl-image public-id="DamagedHelmet3D" fetch-format="png">

</cl-image>

.Net:

cloudinary.Api.UrlImgUp.FetchFormat("png").BuildImageTag("DamagedHelmet3D")

Android:

MediaManager.get().url().fetchFormat("png").generate("DamagedHelmet3D");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setFetchFormat("png").generate("DamagedHelmet3D")!, cloudinary: cloudinary)

Or, by specifying the .png extension, as follows:

Using the URL syntax:
Copy to clipboard
https://res.cloudinary.com/demo/image/upload/DamagedHelmet3D.png

Using the SDK syntax:

Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

Ruby:

cl_image_tag("DamagedHelmet3D", :format=>"png")

PHP:

cl_image_tag("DamagedHelmet3D", array("format"=>"png"))

Python:

CloudinaryImage("DamagedHelmet3D").image(format="png")

Node.js:

cloudinary.image("DamagedHelmet3D", {format: "png"})

Java:

cloudinary.url().format("png").imageTag("DamagedHelmet3D");

JS:

cloudinary.imageTag('DamagedHelmet3D', {format: "png"}).toHtml();

jQuery:

$.cloudinary.image("DamagedHelmet3D", {format: "png"})

React:

<Image publicId="DamagedHelmet3D" format="png">

</Image>

Vue.js:

js
<cld-image publicId="DamagedHelmet3D" format="png">

</cld-image>

Angular:

<cl-image public-id="DamagedHelmet3D" format="png">

</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Format("png").BuildImageTag("DamagedHelmet3D")

Android:

MediaManager.get().url().format("png").generate("DamagedHelmet3D");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setFormat("png").generate("DamagedHelmet3D")!, cloudinary: cloudinary)

You can then apply further transformations to the image, for example:

URL Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

URL:

https://res.cloudinary.com/demo/image/upload/f_png/a_90,ar_1,b_rgb:a17ec5,c_fill,g_auto,h_200/DamagedHelmet3D

Ruby:

cl_image_tag("DamagedHelmet3D", :transformation=>[
  {:fetch_format=>"png"},
  {:angle=>90, :aspect_ratio=>"1", :background=>"#a17ec5", :gravity=>"auto", :height=>200, :crop=>"fill"}
  ])

PHP:

cl_image_tag("DamagedHelmet3D", array("transformation"=>array(
  array("fetch_format"=>"png"),
  array("angle"=>90, "aspect_ratio"=>"1", "background"=>"#a17ec5", "gravity"=>"auto", "height"=>200, "crop"=>"fill")
  )))

Python:

CloudinaryImage("DamagedHelmet3D").image(transformation=[
  {'fetch_format': "png"},
  {'angle': 90, 'aspect_ratio': "1", 'background': "#a17ec5", 'gravity': "auto", 'height': 200, 'crop': "fill"}
  ])

Node.js:

cloudinary.image("DamagedHelmet3D", {transformation: [
  {fetch_format: "png"},
  {angle: 90, aspect_ratio: "1", background: "#a17ec5", gravity: "auto", height: 200, crop: "fill"}
  ]})

Java:

cloudinary.url().transformation(new Transformation()
  .fetchFormat("png").chain()
  .angle(90).aspectRatio("1").background("#a17ec5").gravity("auto").height(200).crop("fill")).imageTag("DamagedHelmet3D");

JS:

cloudinary.imageTag('DamagedHelmet3D', {transformation: [
  {fetchFormat: "png"},
  {angle: 90, aspectRatio: "1", background: "#a17ec5", gravity: "auto", height: 200, crop: "fill"}
  ]}).toHtml();

jQuery:

$.cloudinary.image("DamagedHelmet3D", {transformation: [
  {fetch_format: "png"},
  {angle: 90, aspect_ratio: "1", background: "#a17ec5", gravity: "auto", height: 200, crop: "fill"}
  ]})

React:

<Image publicId="DamagedHelmet3D" >
  <Transformation fetchFormat="png" />
  <Transformation angle="90" aspectRatio="1" background="#a17ec5" gravity="auto" height="200" crop="fill" />
</Image>

Vue.js:

<cld-image publicId="DamagedHelmet3D" >
  <cld-transformation fetchFormat="png" />
  <cld-transformation angle="90" aspectRatio="1" background="#a17ec5" gravity="auto" height="200" crop="fill" />
</cld-image>

Angular:

<cl-image public-id="DamagedHelmet3D" >
  <cl-transformation fetch-format="png">
  </cl-transformation>
  <cl-transformation angle="90" aspect-ratio="1" background="#a17ec5" gravity="auto" height="200" crop="fill">
  </cl-transformation>
</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Transform(new Transformation()
  .FetchFormat("png").Chain()
  .Angle(90).AspectRatio("1").Background("#a17ec5").Gravity("auto").Height(200).Crop("fill")).BuildImageTag("DamagedHelmet3D")

Android:

MediaManager.get().url().transformation(new Transformation()
  .fetchFormat("png").chain()
  .angle(90).aspectRatio("1").background("#a17ec5").gravity("auto").height(200).crop("fill")).generate("DamagedHelmet3D");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setTransformation(CLDTransformation()
  .setFetchFormat("png").chain()
  .setAngle(90).setAspectRatio("1").setBackground("#a17ec5").setGravity("auto").setHeight(200).setCrop("fill")).generate("DamagedHelmet3D")!, cloudinary: cloudinary)

Damaged Helmet single image with transformations

Applying Draco compression to glTF files

You can optimize the mesh buffer in glTF files using Draco compression. To apply Draco compression, use the draco flag (fl_draco in URLs):

URL Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

URL:

https://res.cloudinary.com/demo/image/upload/fl_draco/DamagedHelmet3D.gltz

Ruby:

cl_image_tag("DamagedHelmet3D.gltz", :flags=>"draco")

PHP:

cl_image_tag("DamagedHelmet3D.gltz", array("flags"=>"draco"))

Python:

CloudinaryImage("DamagedHelmet3D.gltz").image(flags="draco")

Node.js:

cloudinary.image("DamagedHelmet3D.gltz", {flags: "draco"})

Java:

cloudinary.url().transformation(new Transformation().flags("draco")).imageTag("DamagedHelmet3D.gltz");

JS:

cloudinary.imageTag('DamagedHelmet3D.gltz', {flags: "draco"}).toHtml();

jQuery:

$.cloudinary.image("DamagedHelmet3D.gltz", {flags: "draco"})

React:

<Image publicId="DamagedHelmet3D.gltz" >
  <Transformation flags="draco" />
</Image>

Vue.js:

<cld-image publicId="DamagedHelmet3D.gltz" >
  <cld-transformation flags="draco" />
</cld-image>

Angular:

<cl-image public-id="DamagedHelmet3D.gltz" >
  <cl-transformation flags="draco">
  </cl-transformation>
</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Transform(new Transformation().Flags("draco")).BuildImageTag("DamagedHelmet3D.gltz")

Android:

MediaManager.get().url().transformation(new Transformation().flags("draco")).generate("DamagedHelmet3D.gltz");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setTransformation(CLDTransformation().setFlags("draco")).generate("DamagedHelmet3D.gltz")!, cloudinary: cloudinary)

If you use the .gltz extension, the whole zip file is delivered containing the modified glTF file, referencing the Draco mesh.
If you use the .gltf extension, only the modified glTF file is delivered.

Delivering FBX files as glTF

You can deliver an FBX file in the glTF format either by setting the fetch_format parameter to gltf (f_gltf in URLs), or by defining the .gltf file extension (format in SDKs). The following example delivers the foyer-table FBX file as glTF, using the .gltf extension:

Using the URL syntax:
Copy to clipboard
https://res.cloudinary.com/demo/image/upload/docs/foyer-table.gltf

Using the SDK syntax:

Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

Ruby:

cl_image_tag("foyer-table", :format=>"gltf")

PHP:

cl_image_tag("foyer-table", array("format"=>"gltf"))

Python:

CloudinaryImage("foyer-table").image(format="gltf")

Node.js:

cloudinary.image("foyer-table", {format: "gltf"})

Java:

cloudinary.url().format("gltf").imageTag("foyer-table");

JS:

cloudinary.imageTag('foyer-table', {format: "gltf"}).toHtml();

jQuery:

$.cloudinary.image("foyer-table", {format: "gltf"})

React:

<Image publicId="foyer-table" format="gltf">

</Image>

Vue.js:

js
<cld-image publicId="foyer-table" format="gltf">

</cld-image>

Angular:

<cl-image public-id="foyer-table" format="gltf">

</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Format("gltf").BuildImageTag("foyer-table")

Android:

MediaManager.get().url().format("gltf").generate("foyer-table");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setFormat("gltf").generate("foyer-table")!, cloudinary: cloudinary)

You can also deliver an FBX file in the gltz (zipped) format. Either way, you can apply Draco compression to the model at the same time:

Using the URL syntax:
Copy to clipboard
https://res.cloudinary.com/demo/image/upload/fl_draco/docs/foyer-table.gltz

Using the SDK syntax:

Ruby PHP Python Node.js Java JS jQuery React Vue.js Angular .Net Android iOS All

Ruby:

cl_image_tag("docs/foyer-table", :transformation=>[
{:format=>"gltz"},
{:flags=>"draco"}
])

PHP:

cl_image_tag("docs/foyer-table", array("transformation"=>array(
array("format"=>"gltz"),
array("flags"=>"draco")
)))

Python:

CloudinaryImage("docs/foyer-table").image(transformation=[
{'format': "gltz"},
{'flags': "draco"}
])

Node.js:

cloudinary.image("docs/foyer-table", {transformation: [
{format: "gltz"},
{flags: "draco"}
]})

Java:

cloudinary.url().transformation(new Transformation()
.format("gltz").chain()
.flags("draco")).imageTag("docs/foyer-table");

JS:

cloudinary.imageTag('docs/foyer-table', {transformation: [
{format: "gltz"},
{flags: "draco"}
]}).toHtml();

jQuery:

$.cloudinary.image("docs/foyer-table", {transformation: [
{format: "gltz"},
{flags: "draco"}
]})

React:

<Image publicId="docs/foyer-table" >
<Transformation format="gltz" />
<Transformation flags="draco" />
</Image>

Vue.js:

js
<cld-image publicId="docs/foyer-table" >
<cld-transformation format="gltz" />
<cld-transformation flags="draco" />
</cld-image>

Angular:

<cl-image public-id="docs/foyer-table" >
<cl-transformation format="gltz">
</cl-transformation>
<cl-transformation flags="draco">
</cl-transformation>
</cl-image>

.Net:

cloudinary.Api.UrlImgUp.Transform(new Transformation()
.Format("gltz").Chain()
.Flags("draco")).BuildImageTag("docs/foyer-table")

Android:

MediaManager.get().url().transformation(new Transformation()
.format("gltz").chain()
.flags("draco")).generate("docs/foyer-table");

iOS:

imageView.cldSetImage(cloudinary.createUrl().setTransformation(CLDTransformation()
.setFormat("gltz").chain()
.setFlags("draco")).generate("docs/foyer-table")!, cloudinary: cloudinary)

Note

It is not possible to deliver a glTF file as FBX.
