Text layer options

This page covers text layer options for images. For the layer syntax itself, see Layer syntax. For layer transformations, see Transforming layers.

Text layers can be customized in a variety of ways, such as applying CSS-like styles, adding line breaks, applying special characters, custom fonts, and more.

Styling parameters

In addition to the required font family and font size values of the text layer, a variety of optional CSS-like styles are supported, such as decoration, alignment, letter spacing, line spacing and more. For a full list, see the Styling parameters table in the Transformation Reference.

The Cloudinary SDK helper methods support supplying the values as an array of mapped values or as a serialized string of values. For example, in Ruby (other frameworks use similar syntax):

For example, to overlay the text string "Style" in Verdana bold with a size of 75 pixels, underlined, and with 14 pixels spacing between the letters: l_text:Verdana_50_bold_underline_letter_spacing_14:Style:

Text color

You can control the color of the text overlay by adding the color property (co in URLs).

Opaque colors can be set as an RGB hex triplet (e.g., co_rgb:3e2222), a 3-digit RGB hex (e.g., co_rgb:777) or a named color (e.g., co_green). By default, if the color property is omitted, the text has a black color.

For example, adding the text string "Style" in Times bold with a size of 90 pixels at a distance of 20 pixels from the bottom of the base image, in yellow text (FFFF00):

You can also use a 4-digit or 8-digit RGBA hex quadruplet for the color, where the 4th hex value represents the alpha (opacity) value (e.g., co_rgb:3e222240 results in 25% opacity).

The example below uses the same text string "Style" in Times bold with a size of 90 pixels at a distance of 20 pixels from the bottom of the base image, in yellow text, but this time with an opacity of 50% (FFFF0080):

Multi-line text

You can manually break lines of text by separating each line of text with the newline character (%0A). For example, adding the text string "Pretty Flowers" in Verdana bold with a size of 50 pixels at a distance of 10 pixels from the left border of the base image, where each word appears on a new line with line spacing of -15 pixels:

Auto-line breaks

Cloudinary can also automatically wrap your text into multiple lines based on a specified maximum width for the text string. To do this, apply the fit crop mode to the text layer and specify the width to use for word wrapping. This setting tells Cloudinary to automatically wrap the actual text content onto a new line once the width is reached.

For example, to add a long text string in bold Neucha font with a size of 26 pixels to the base image that wraps at a width of 400 pixels:

When using the fit (textFit in some SDKs) crop mode, you must specify a width for your text overlay, but height is optional. Line breaks are applied as needed to achieve the requested width and/or height rectangle.

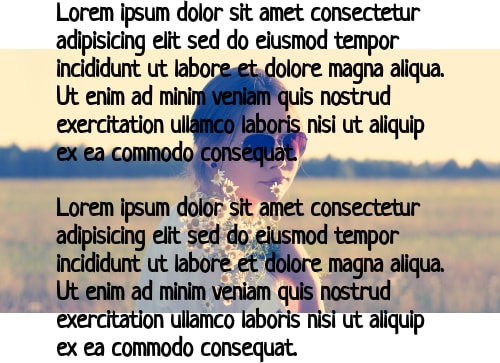

The specified font size of your overlay stays as is, even if the resulting text overlay height exceeds the height of its hosting image. So, if you don't limit the overlay height, the height of the image expands to accommodate large texts:

If you do limit the height of your overlay, any text that does not fit within the space defined is cut and an ellipsis (...) is added to the end of the text string to indicate that the text was truncated.

To define a maximum height for the multi-line text add the height parameter in addition to width in the 'resize' transformation of your text layer:

You can also set text alignment and line spacing values to further control the text's appearance. Other resize parameters can be applied as an action over the entire overlay (before the fl_layer_apply) to resize the resulting the text-image overlay as a whole after it's created.

For example, to add a long text string in center aligned bold Times font with a size of 14 pixels to the base image, that wraps at a width of 200 pixels and is limited to a height of 150 pixels; and then rotate the text by 9 degrees and set 30 pixels from the north border to better align with the underlying image:

Special characters

Text strings containing special characters need to be modified (escaped) for use with the text overlay feature. This is relevant for any special characters that would not be allowed "as is" in a valid URL path, as well as other special Unicode characters.

These text strings should be escaped using %-based UTF-8 encoding to ensure the text string is valid (for example, replace ? with %3F and use %20 for spaces between words).

This encoding is handled automatically when embedding asset using the Cloudinary SDK helper methods, but you must handle it when manually building the asset delivery URL.

Characters that require double-encoding

To include a comma (,) forward slash (/), percent sign (%) or an emoji character in a text overlay, you must double-encode the % sign within those codes. For example:

• Add a comma to a text overlay as %252C (and not just %2C).

• Similarly, to ensure that a slash isn't treated as a chained transformation separator in your URL, use %252F for slashes.

  • Alternatively, you can use the Unicode division slash U+2215 (visually similar to /) and URL-encode it as %E2%88%95, for example: l_text:Arial_80:Comfort%E2%88%95emoji.

• The encoded value for the flower emoji is %E2%9D%80. To include this emoji in a text overlay, you must also escape (encode) each of the % signs using %25 within the value: l_text:Arial_80:Comfort%25E2%259D%2580:

Tip: Double-escaping an entire text segment

When manually building delivery URLs, a simple way to avoid mistakes is to double-encode the entire text segment so all reserved characters (e.g., %, /, ,, #, ?, as well as line breaks) are preserved.

For example: l_text:arial_23:%252C%2520-%2520comma%250A%2520%253F%2520-%2520question%2520mark%250A%2520%252F%2520%255C%2520-%2520both%2520slashes%250A%2523%2520-%2520hash

Chinese and Japanese text overlays

The following Chinese and Japanese font families are available by default and can be used directly as the font_family value for text overlays:

Chinese font families

• AR PL KaitiM GB
• AR PL UKai CN
• Firefly Sung
• WenQuanYi Micro Hei
• WenQuanYi Micro Hei Mono
• WenQuanYi Zen Hei
• WenQuanYi Zen Hei Mono
• WenQuanYi Zen Hei Sharp

For example:

Japanese font families

• TakaoExGothic
• TakaoExMincho
• TakaoGothic
• TakaoMincho
• TakaoPGothic
• TakaoPMincho

For example:

Experiment with text overlays

Explore text overlay options interactively. Adjust the text, font, font size, opacity, and color to see how they affect your image:

Text Layer Playground

Text:

Font: Arial Times New Roman Courier Georgia Verdana Impact Roboto Pacifico

Font Size: 60px

Opacity: 100%

Color: White Black Red Blue Yellow Green Purple Orange

Prevent overflow (fl_no_overflow)

Keeps layer within image bounds

Preview:

Transformation URL: c_fill,w_400,h_300/l_text:Impact_60:Hello%20World,co_white/fl_layer_apply,g_center
